Franke Sissons Heavy Duty Campus Wall Mounted Bolt Fix WC Pan with Black Seat and Lid - HDTX592B
Wall hung WC pan, hidden mounting with stainless steel rods through wall, fixing and service via maintenance room, stainless steel, surface satin finished, material thickness 1.6 mm, flushing certificated to EN 997, concealed flushing rim with min. 4 liter flushing capacity, with a shrouded 100 mm diameter horizontal 'P' trap outlet, pressed seat area tapered towards centre, all edges curved, fixing with 280 mm stainless steel rods and screw nuts (included) through the wall. 4 litre flush EN997 approved.

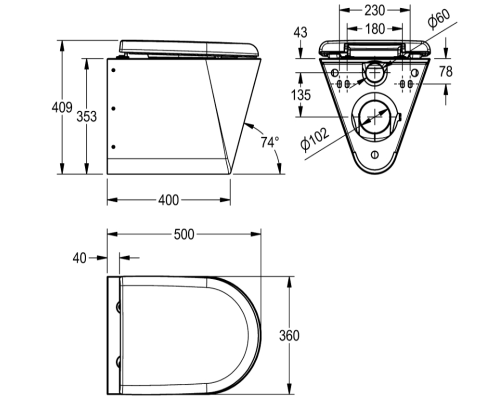

- Overall depth - 500.00 mm
- Overall height - 348.00 mm
- Overall width - 360.00 mm
- Type of mounting - Bolt fix with duct wall
- Outlet size - DN 100
- Inlet size - DN 55
- Minimum flushing capacity - 4.00 liter
- Type of toilet seat - Synthetic hinged seat with lid
- Type of WC - Wall hung
